PROJECT:

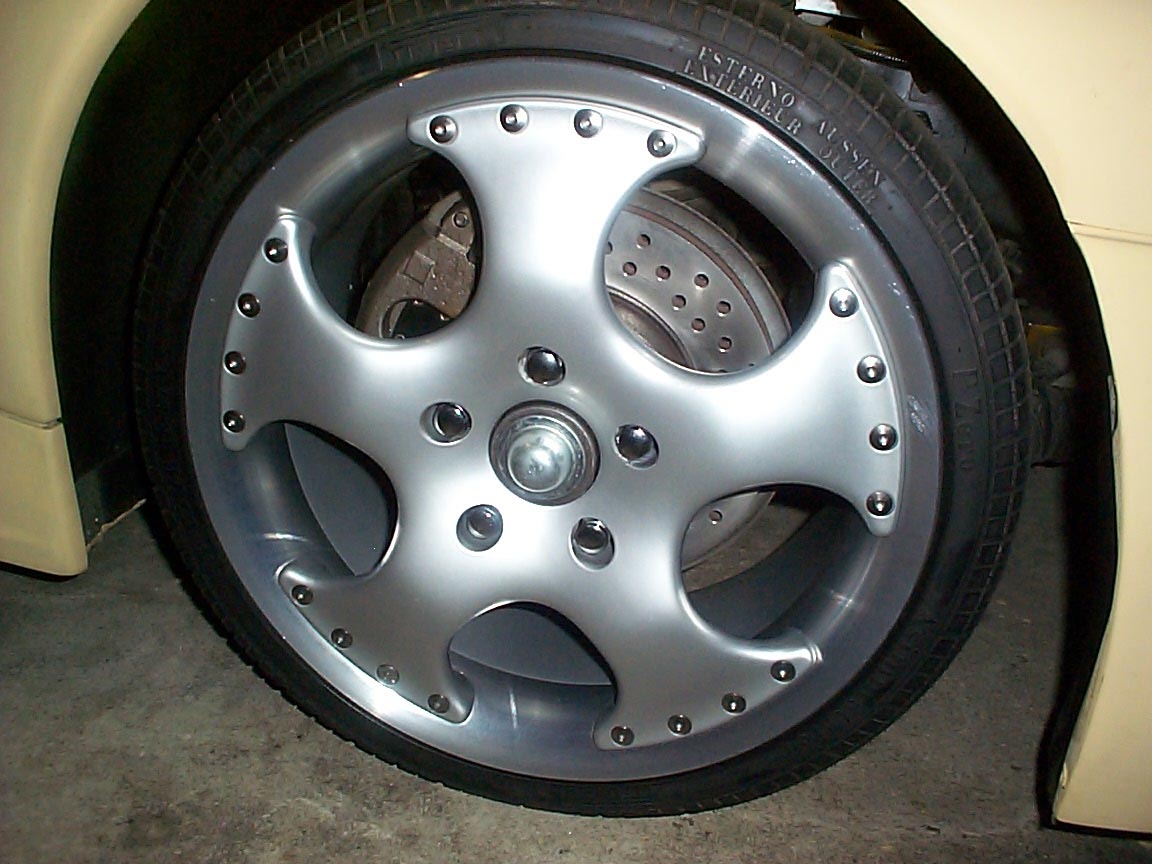

Drilled
Rotors. (Before drilling, I elected to
replace one of the existing front rotors simply because the two I had originally
picked up from the wrecking yard did not perfectly match). Up front, the $15 a day Diablouses 12 inch
rotors
from a 1985 Chevy 1/2 ton pick-up truck (front rotors). To improve appearance,
performance, cooling, and to lighten the rotors (4 1/2 pounds each by the way) I
hired LSD of Ontario, California to drill 54 (3/8") holes in
each rotor. An actual Diablo has 52 (1/4")
holes in each rotor but we drilled larger holes for a more "beefy" appearance
and to remove more metal (thus lightening the rotor more). After drilling,
each rotor was carefully cleaned. Next, the existing bearings and seals
were cleaned, greased, and reinstalled. The project was casually completed over
a 10 day period.
Labor: drilling $1.00
ea hole.
Parts: one new rotor $40.
Average cost: 15 dollars a day
Fred
Nelson Fabrication
$15 a day Diablo
uses 12
inch
rotors
from a 1985 Chevy 1/2 ton pick-up truck (front rotors). To improve appearance,
performance, cooling, and to lighten the rotors (4 1/2 pounds each by the way) I
hired LSD of Ontario, California to drill 54 (3/8") holes in
each rotor. An actual Diablo has 52 (1/4")
holes in each rotor but we drilled larger holes for a more "beefy" appearance
and to remove more metal (thus lightening the rotor more). After drilling,
each rotor was carefully cleaned. Next, the existing bearings and seals
were cleaned, greased, and reinstalled. The project was casually completed over
a 10 day period.
