FOR SALE: I have over $50,000 invested in this project, but family situation forces me to sacrifice. Included:
Complete body kit, including dashboard and panels for interior trim and console
Replica tubular steel chassis built from factory plans
OEM suspension and steering geometry control arms

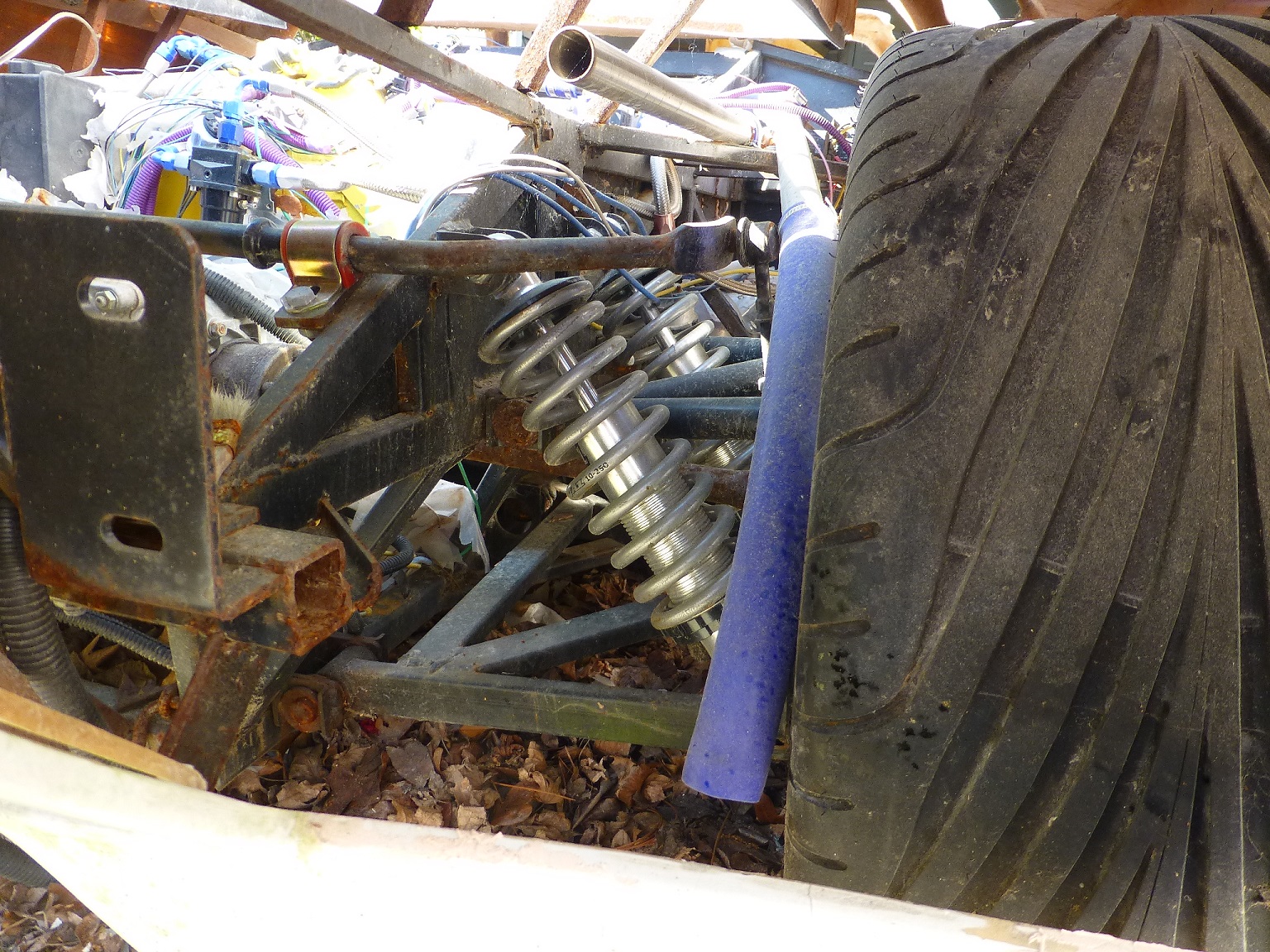

Adjustable-height, adjustable-ride coil-over shocks
13 Corvette brakes on all four wheels
Rack-and-pinion steering, steering column and wheel

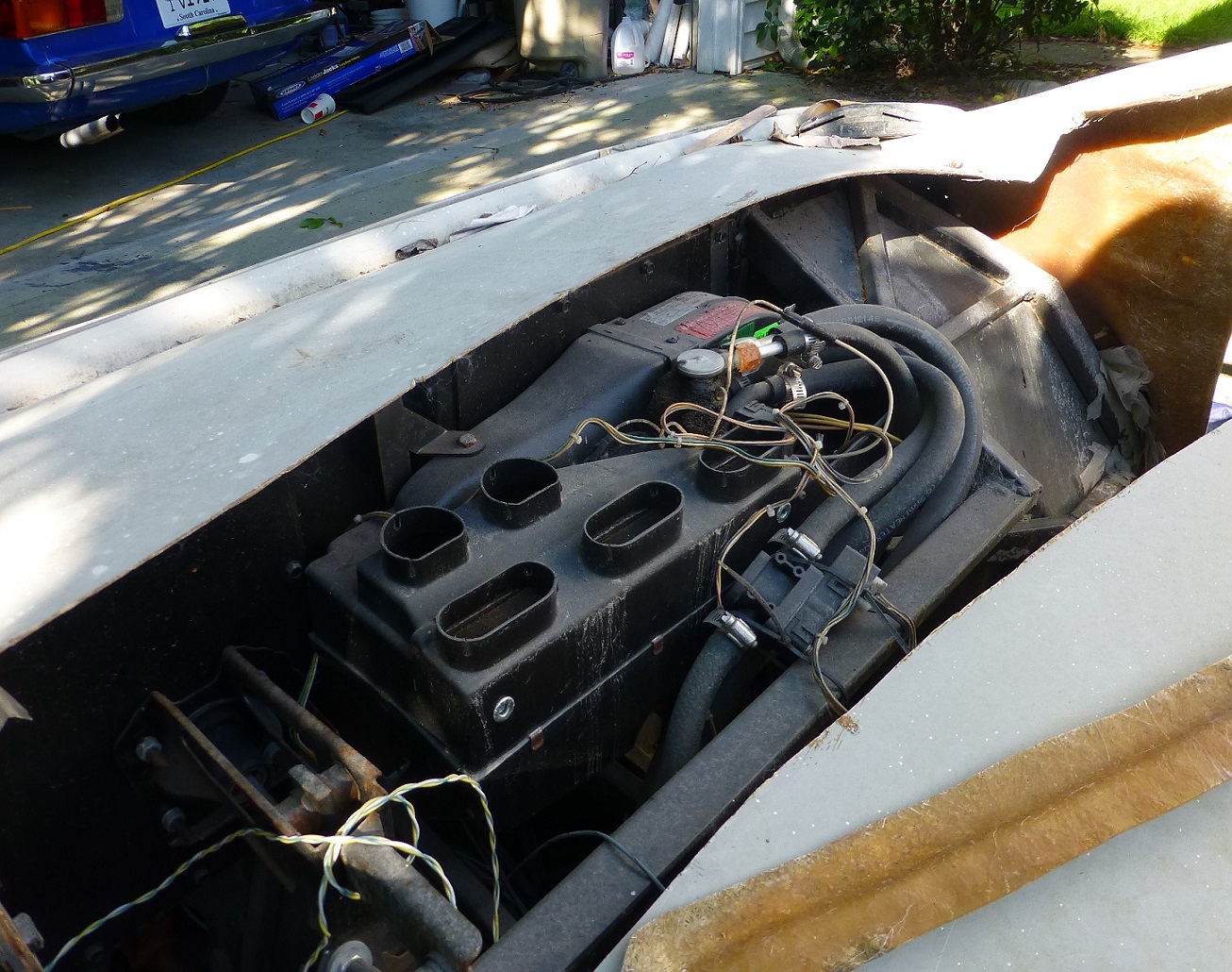

Complete custom heating and air conditioning system with OEM vents
Complete VDO gauge set mounted in replica dash
OEM dashboard warning light strip
OEM dash and console switches
Door glasses and electric window regulators, OEM switches
Broken windshield, can be used as pattern to cut new windshield from a Chevy Lumina
Nissan 300ZX headlights
OEM tail, brake and back-up lights
Custom-made door hinges, OEM door latches and strikers
Complete aftermarket wiring harness, already 90% wired
Engine control computer, programmed and ready to run

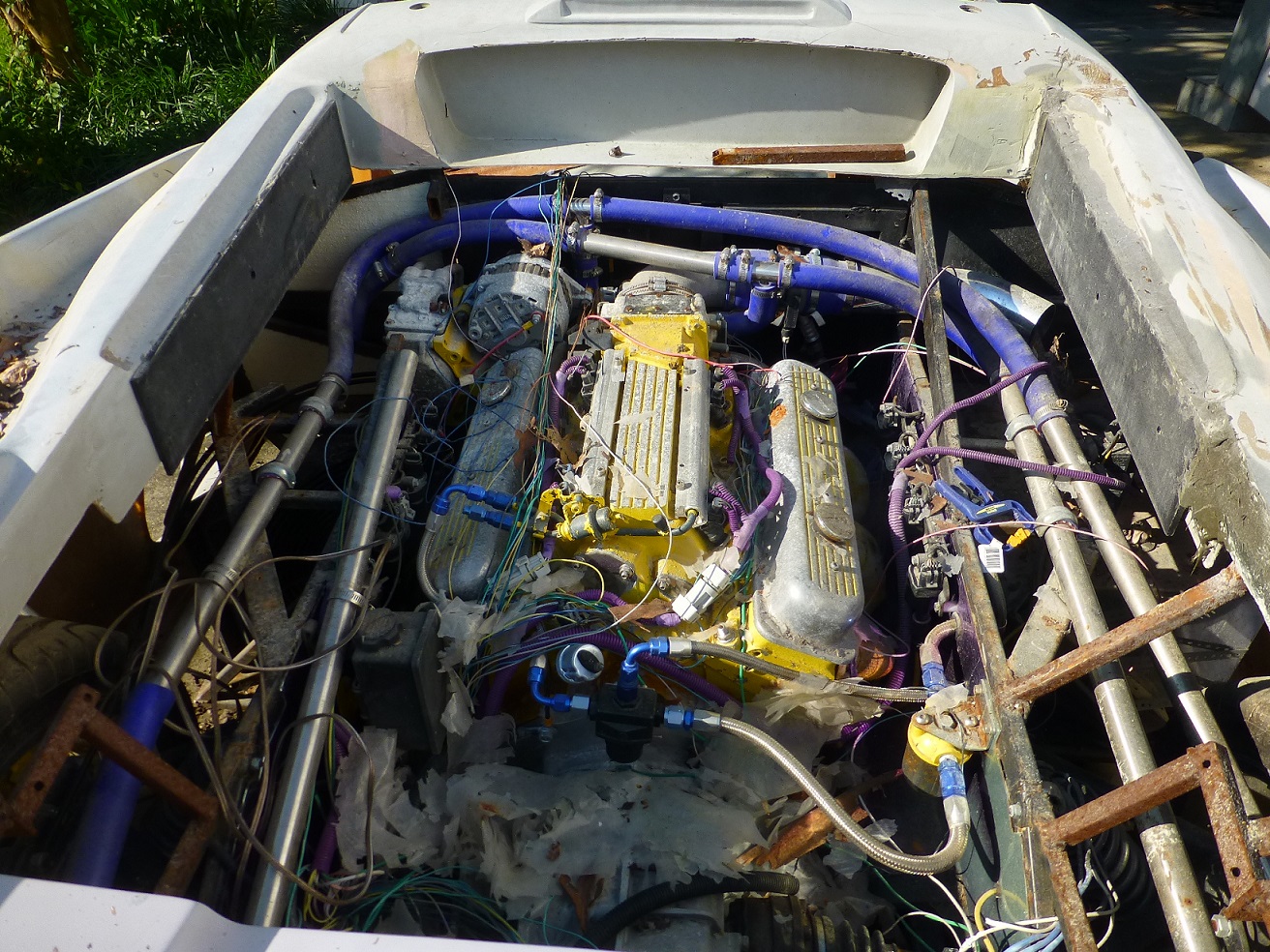

Engine oh, the engine! Keep up with genuine Diablos!
Started with 1995 Corvette LT1 engine
Block boiled, magnafluxed, bored and stroked to 409 cubic inches
Assembled with new forged pistons, rods and crankshaft
LT4 hot roller camshaft
Heads ported, polished, oversized valves, roller rocker arms
Intake manifold ported, polished, port-matched
Oversized throttle body
High capacity, heavy duty oil pump
Tubular headers
Assembled, blueprinted and balanced by professional stock car engine builder
High capacity electric fuel pump, braided stainless fuel lines
Estimated horsepower 550
Aluminum racing fuel cell
Porsche 911 G50/03 transaxle with Kennedy kit to run upside down
Racing clutch
Porsche Boxster cable shifter and cables

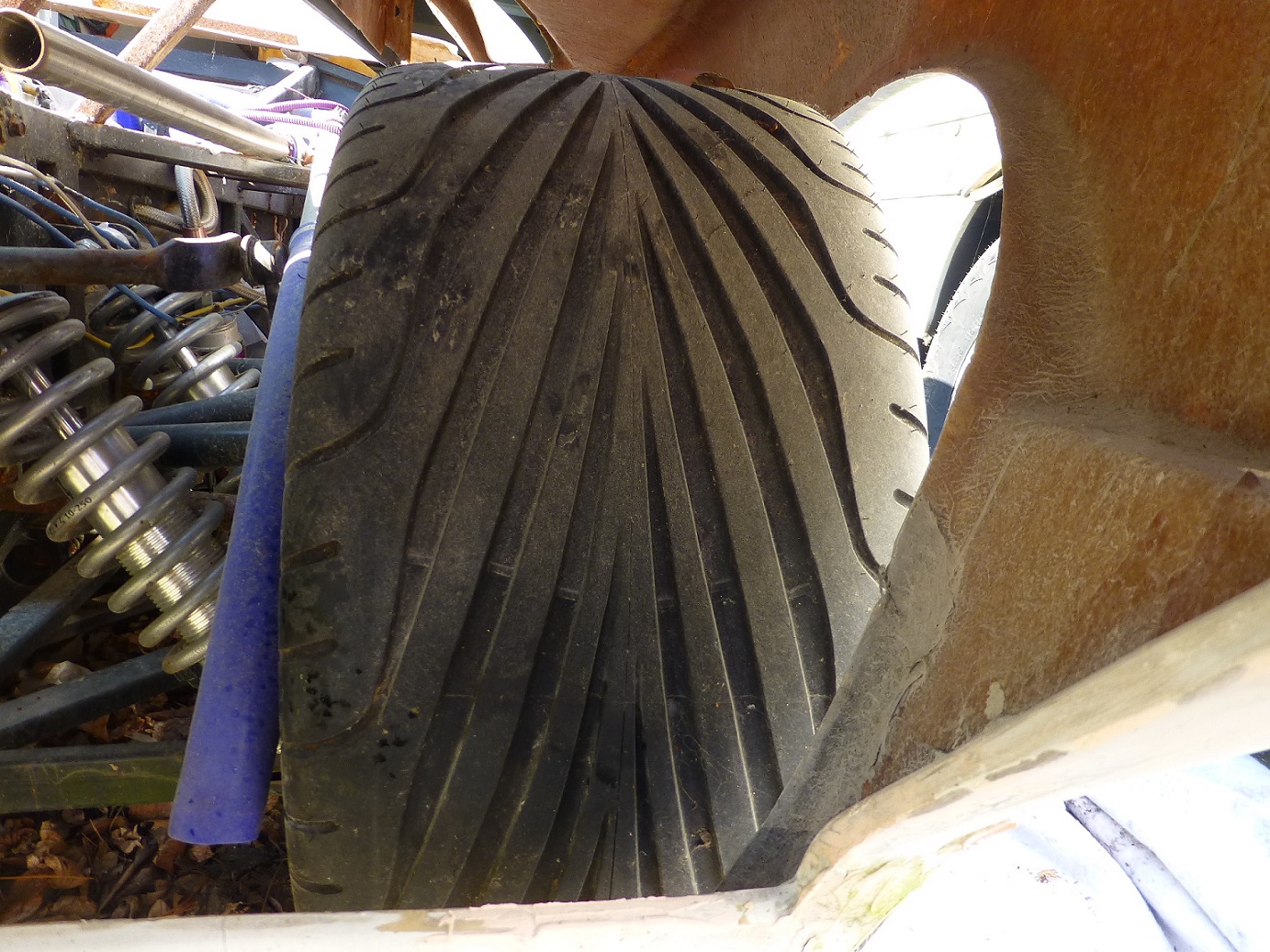

New Goodyear F1 tires, 245/30 ZR18 front, 295/35 ZR18 rear

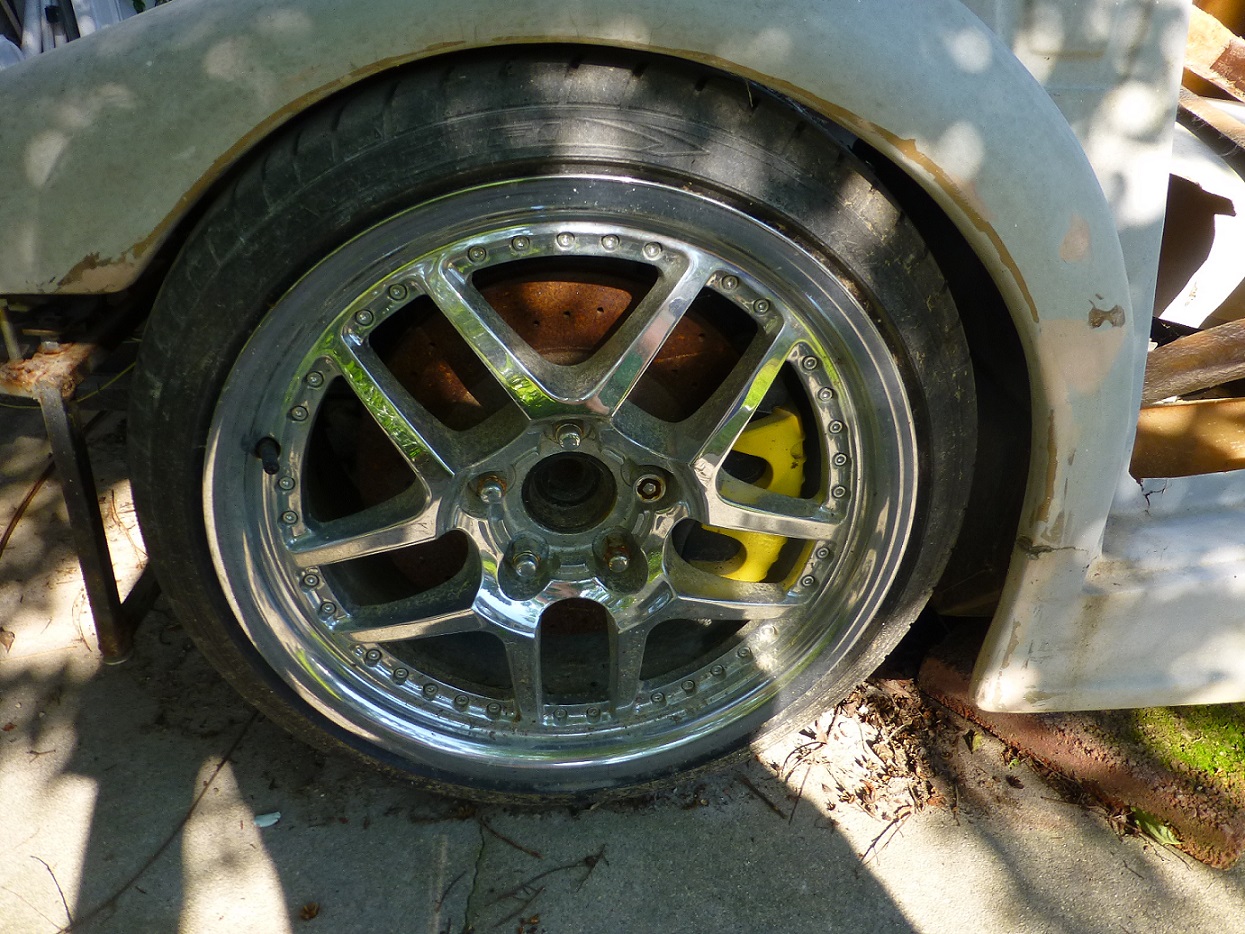

New chrome wheels
Twin Honda Civic aluminum radiators with stainless and silicone hoses
Remaining to be done: assemble and mount doors (one is mostly done), finish mounting of removable roof panel. Mount engine bay cover latches, headlights and tail lights, some fiberglass touch-up, interior, paint

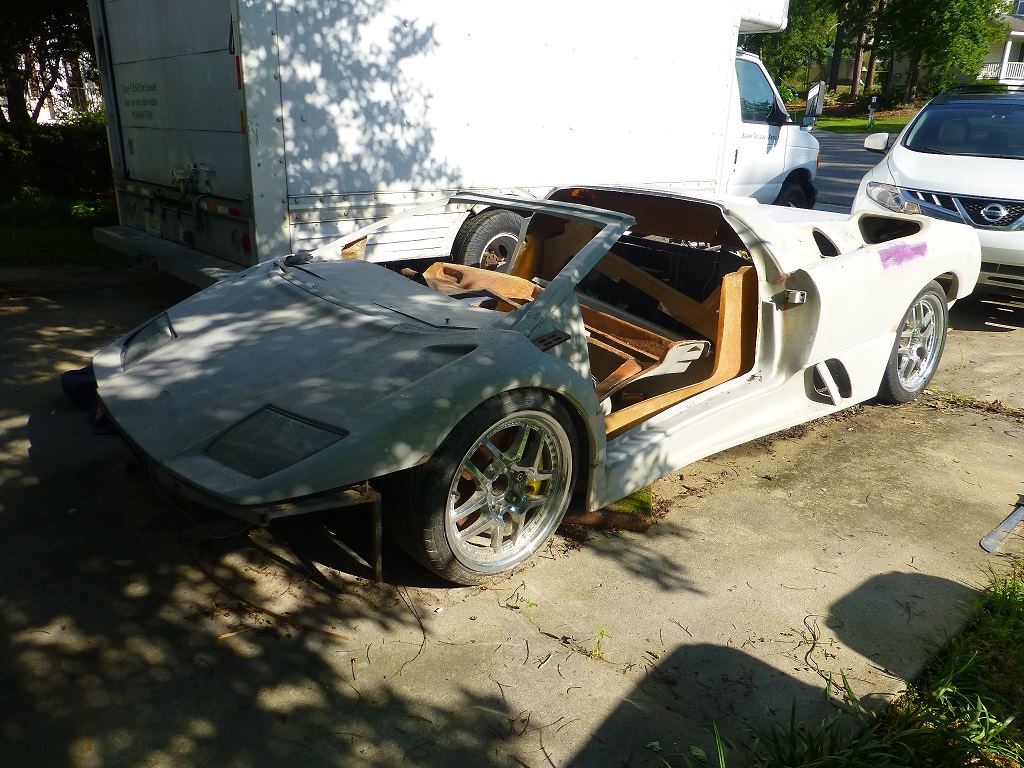

This project was built from the ground up to look, run, handle and perform as well as a real Diablo. Stand on my shoulders and get yourself a Diablo to be proud of at about half the cost. $25,000
